Mazdaspeed 3 Damond Motorsports Oil Catch Can Kit Stage 1
Mazdaspeed 3 Damond Motorsports Oil Catch Can Kit Stage 1
Mazdaspeed 3 Damond Motorsports Oil Catch Can Kit Stage 1

Mazdaspeed 3 Damond Motorsports Oil Catch Can Kit Stage 1

Regular price$200.00
/

Mounting Location
Hose Color
Add VTA Kit

Damond Motorsports Oil Catch Can kits come with everything needed for an optimized Oil Catch Can system. An oil catch can is, in a sense, a filter for the positive crankcase ventilation system. The oil catch can(OCC for short) is used to tap and contain blow-by oils and condensed crankcase gases, that would otherwise flow through the PCV system back into the intake tract, and allows for draining of these fluids remotely. With the addition of an OCC kit, blow-by oils and gasses are routed to the OCC allowing them to be captured. This prevents the blow-by from entering the intake system, where it would otherwise contaminate the clean air entering the engine. Cleaner air leads to better combustion, more power, better fuel economy, less detonation, and less oily build-up.


What sets the Damond Motorsports OCC kits apart from the rest, is that we fully test our OCC components, to insure the best OCC set-up for your vehicle. Only high quality components are used in the Damond Motorsports OCC kits. Our OCC kits come tailored to fit your Mazdaspeed perfectly, for a no-hassle, quick and simple instillation. Each OCC kit includes a check valve, to prevent boost from possibly entering the crankcase, via the prone to leaking OEM PCV valve. The check valve allows for a 1-way operation of the OCC system, keeping everything under vacuum, to better help vent the crankcase.

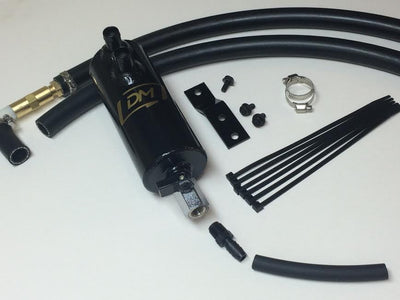

Included in each Damond Motorsports OCC kit:
A Damond Motorsports OCC
Quick-opening/high-flowing check valve, assembled/sealed with fittings
Pre-cut oil and vacuum resistant hoses (black, blue, or red)
Location specific bracket, and mounting hardware
Slim stainless steel hose clamps
Plenty of zip ties



The DM OCC features:
-Fully welded external aluminum structure. Welded on ports for a nice clean look, and to keep weight at a minimum.
-Layers and layers and layers of perforated baffle plates, allowing a large surface area for blow-by vapors to latch onto and keep the intake tract clean. The bottom layer features an oil scraper. Blow-by is forced directly onto the scraper, while the air is pushed around the sides of the can to the back of the lower chamber. The air is then drawn up diagonally through 3 more perforated plates, before it exits the top chamber.
-A super easy to use high flowing drain valve.
-Optional DM partial VTA valve and filter OCC set-up(recommended for high boost applications).
-Powder coated for enhanced durability.




With all Damond Motorsports OCC kits, you have many options. For the Mazdaspeeds there are different mounting locations. This way you can pick the location that works best for you, and your vehicle’s pre-existing modifications. You also have the choice of 3 different possible hose colors: Black, Blue, and Red.

-We also can provide Hose & Hardware kits(everything minus an OCC), just an OCC, additional OCCs, check valves, and whatever else you might need for your custom PCV set-up. Shoot us an email, or call for a custom set-up.


Mounting Locations:

Location 1:
-Mounted below the factory intake/short-ram intakes
-Allows space for intercooler piping
-Easy to drain, the drain valve can be reached from above the engine
-Most popular OCC kit, for the MS3
-Will NOT fit with some cold-air intakes

Location 2:
-Mounted on the transmission, underneath the factory intake/short-ram intakes
-Designed to allow space with cold air intakes
-Easy to drain, the drain valve can be reached from above the engine
-Occupies the space for most front-mount intercooler piping, and will NOT fit with some FMIC kits.
