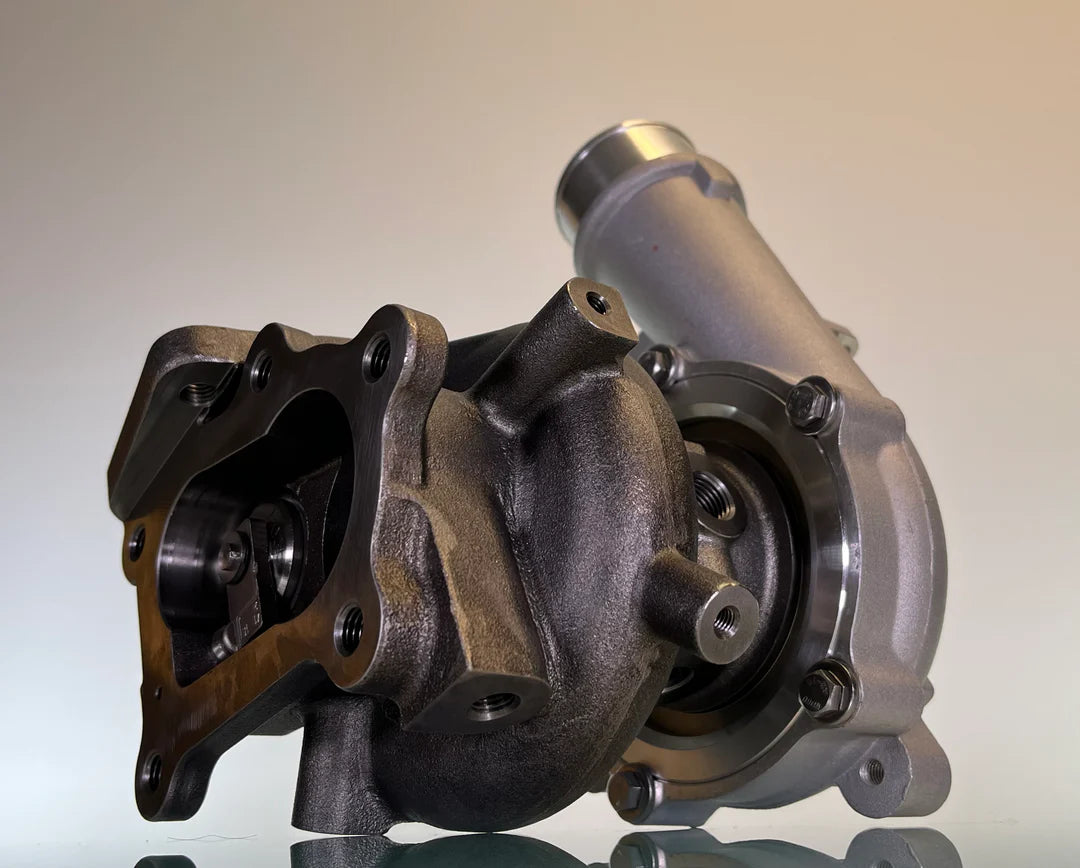

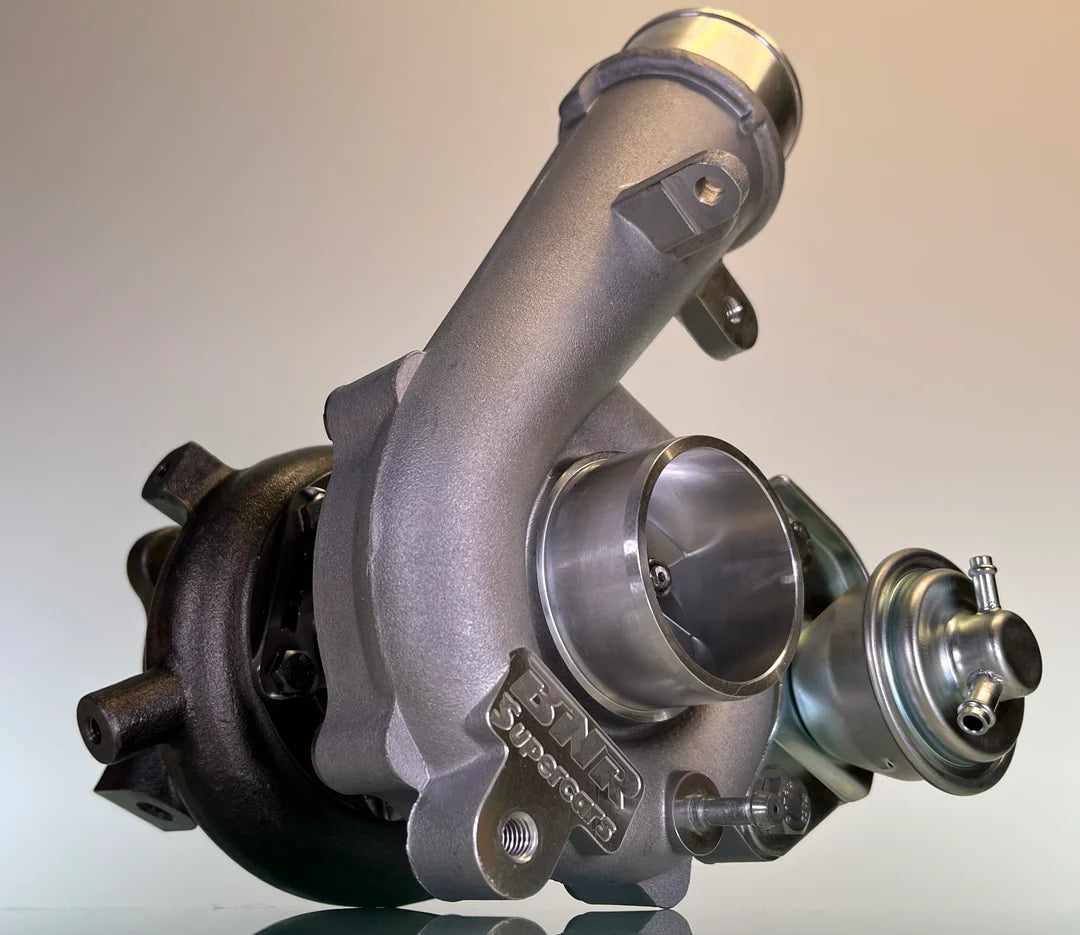

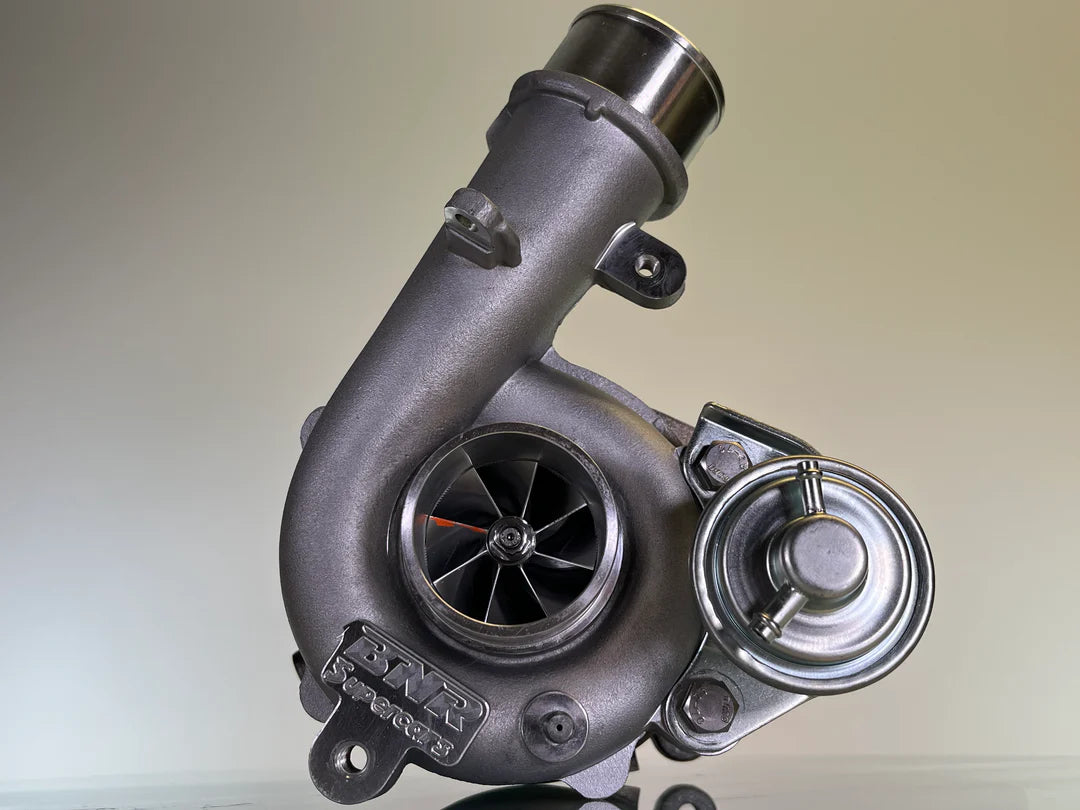

BNR S1 Turbocharger
BNR S1 Turbocharger
BNR S1 Turbocharger

BNR S1 Turbocharger

Regular price $1,100.00 Sale price$999.99 Save $100.01

The S1 is the easiest turbocharger swap you can do.  It’s a direct bolt in capable of 40 lbs/min of air flow.  This is what you get when you order an S1!

  • GT28 Turbine wheel
  • BNR’s custom GT2860 compressor wheel (40 lbs/min flow rate)
  • High Performance 360 thrust assembly
  • Wide journal bearings
  • Rear journal bearing oil deflector (Diverts oil away from the turbine seal)
  • High Performance turbine seal
  • Balanced and blue printed to .5 gram/in2
  • BNR’s custom T2 bearing housing (uses all OE oil and water fittings)
  • CNC machined factory compressor housing

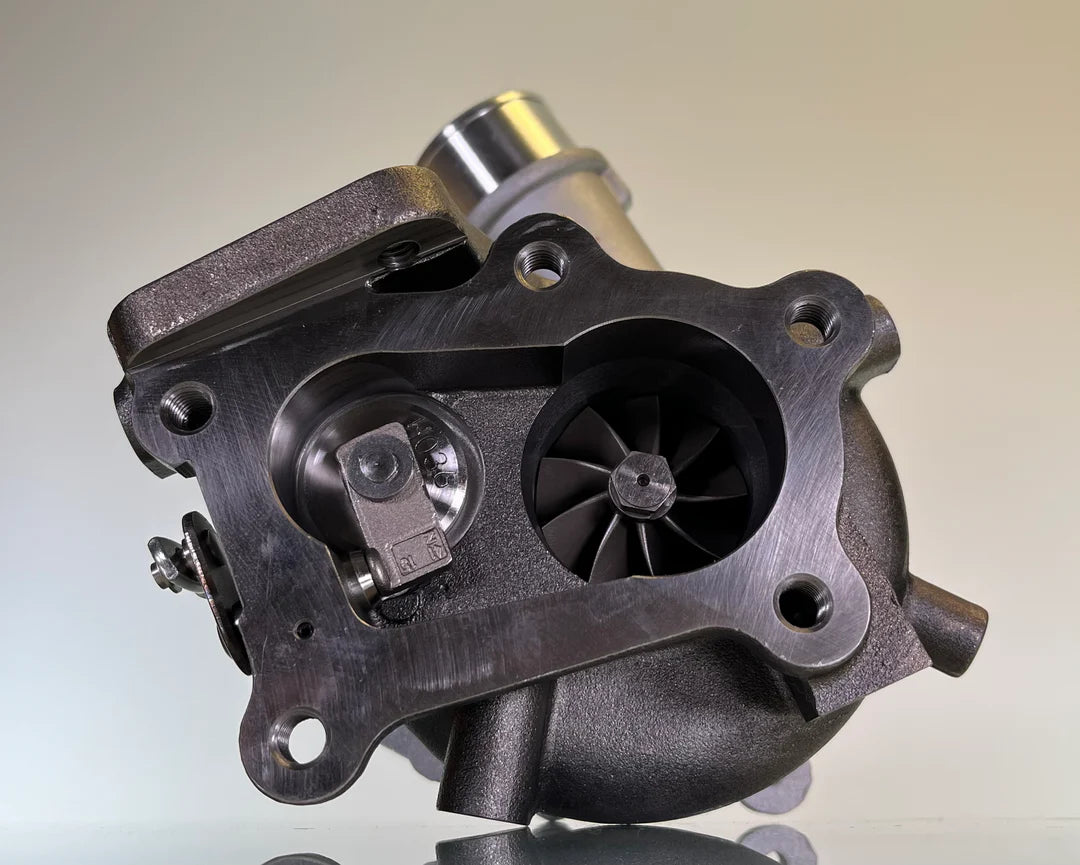

  • BNR .63 a/r turbine housing with 27mm wastegate port

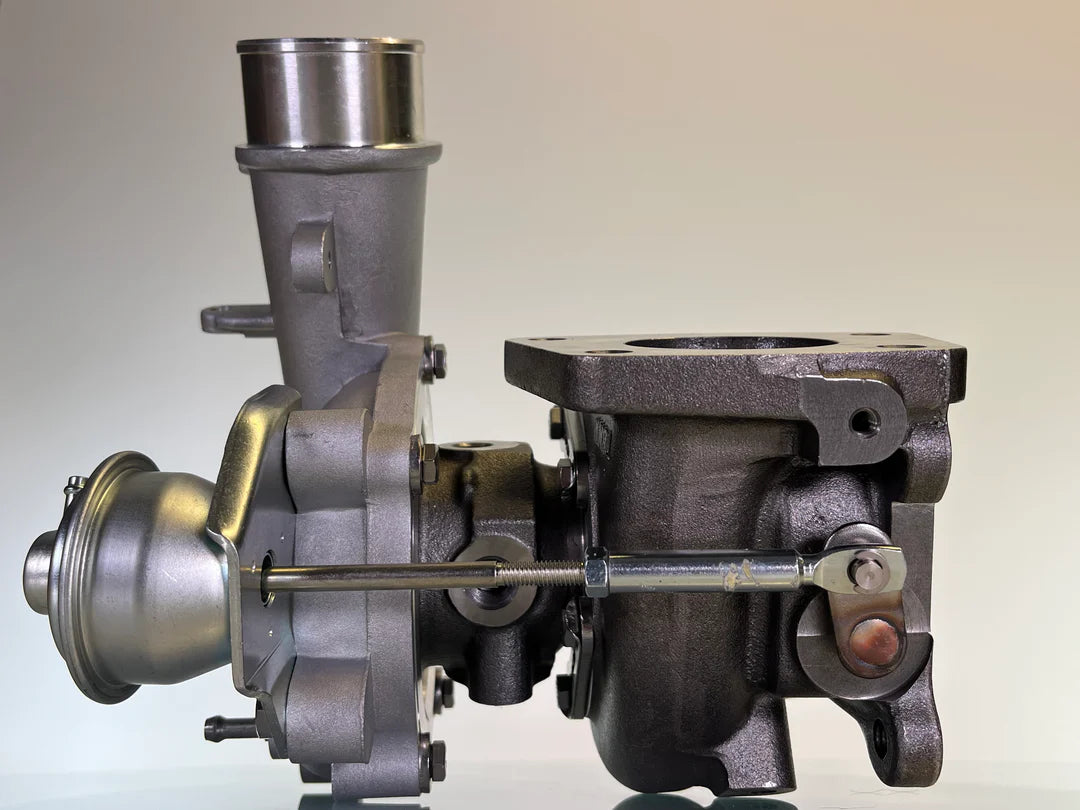

  • Adjustable factory wastegate actuator (set at 13 psi)
  • All stainless hardware

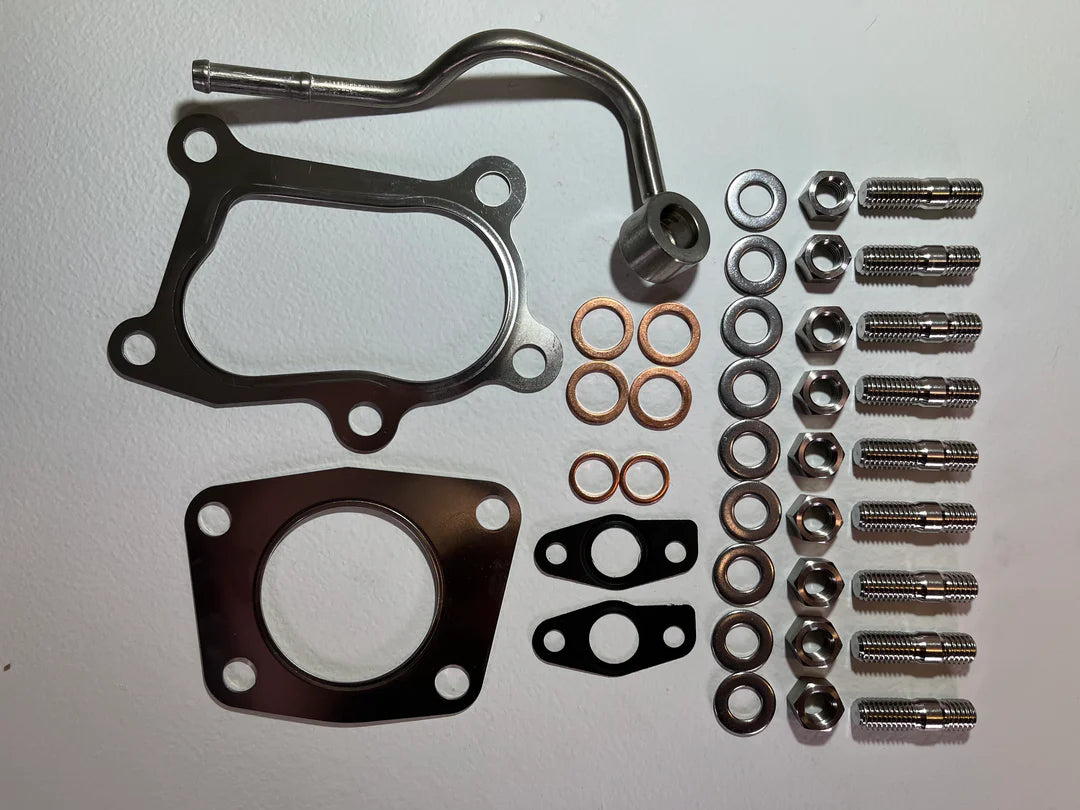

  • 5 Layer stainless MLS turbine inlet/outlet gaskets
  • (9) M10 1.5 exhaust studs
  • Extended stainless water line (firewall side)
  • (4) 14mm copper sealing rings
  • 1 year warranty!
