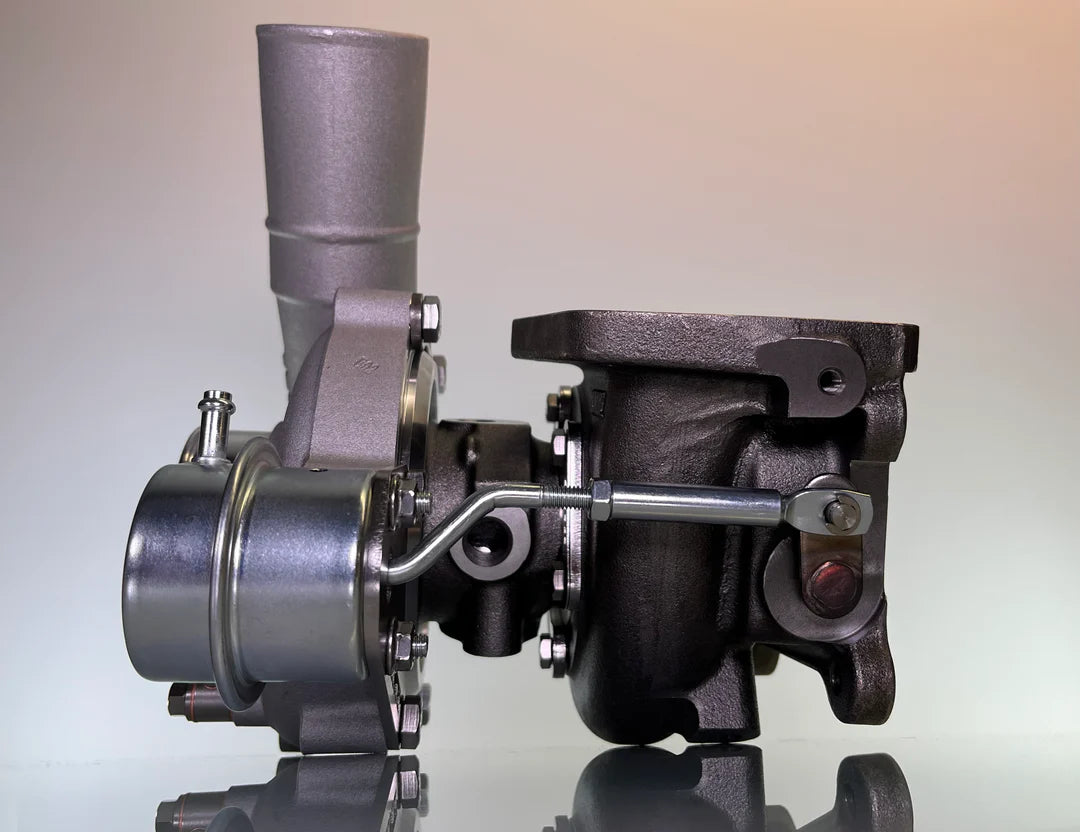

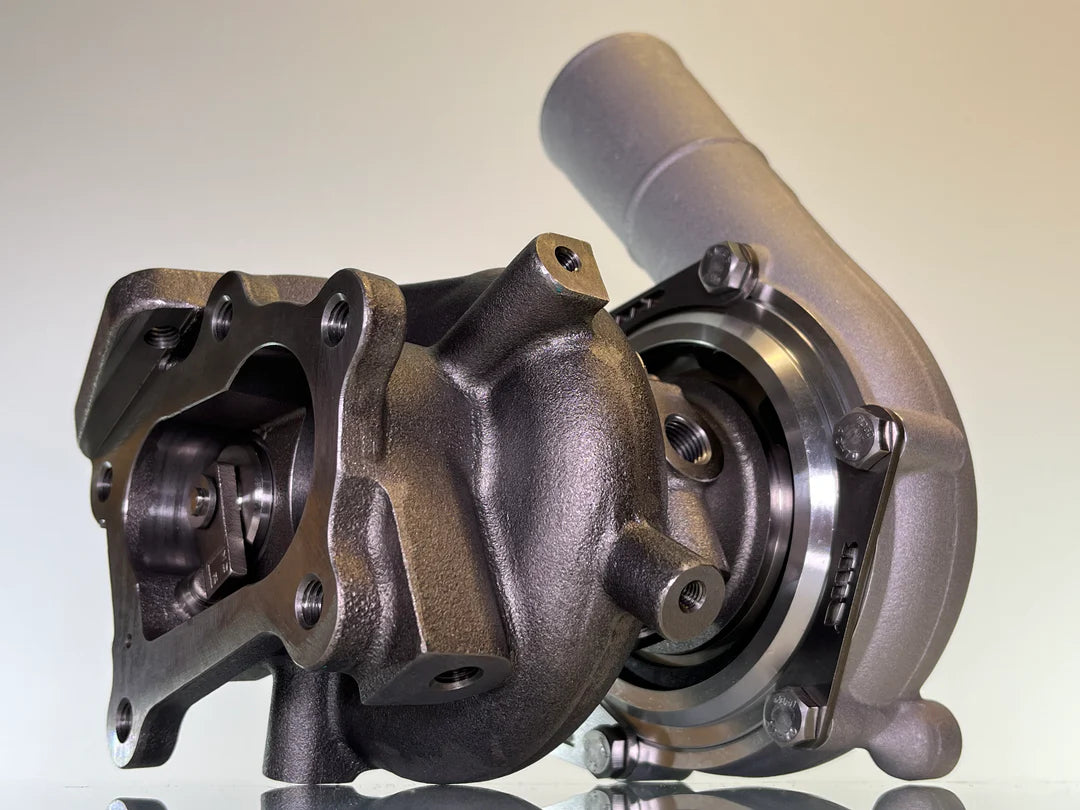

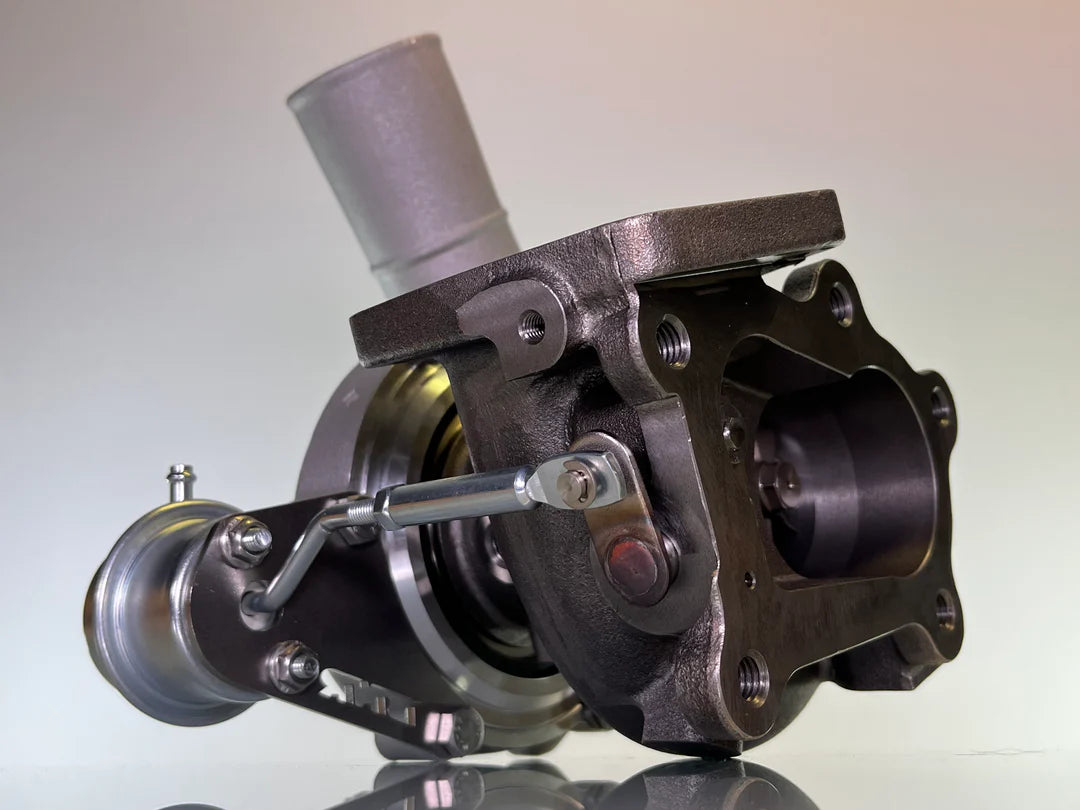

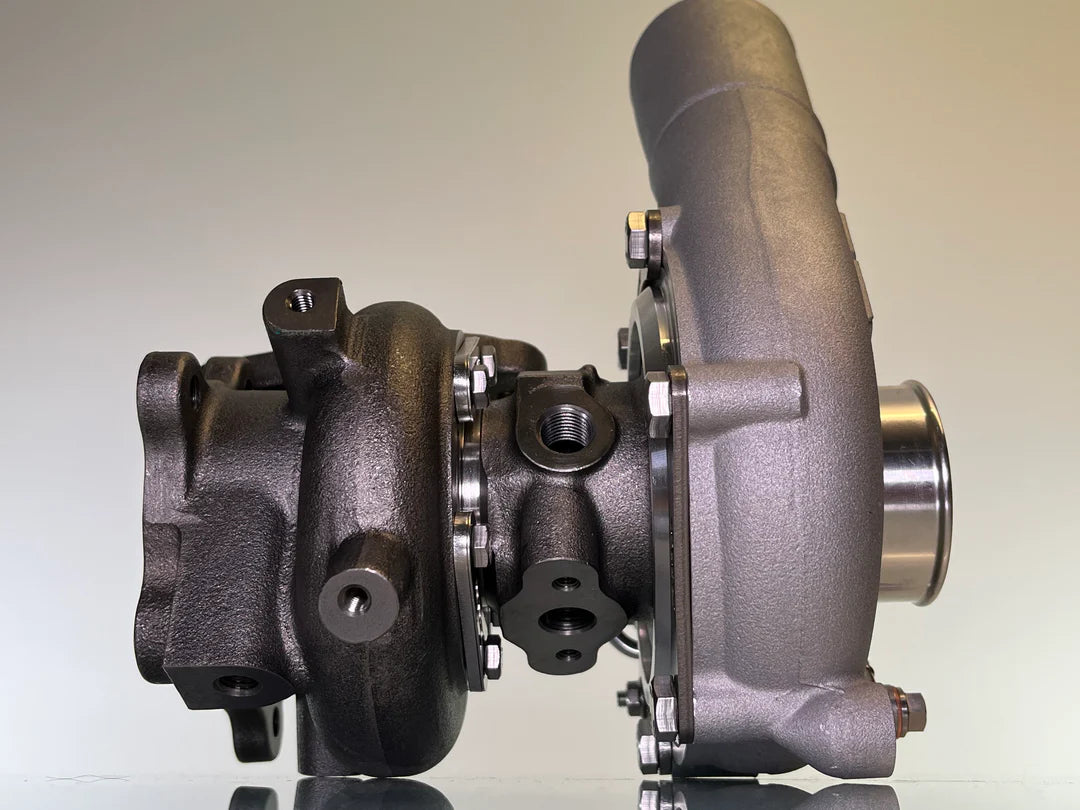

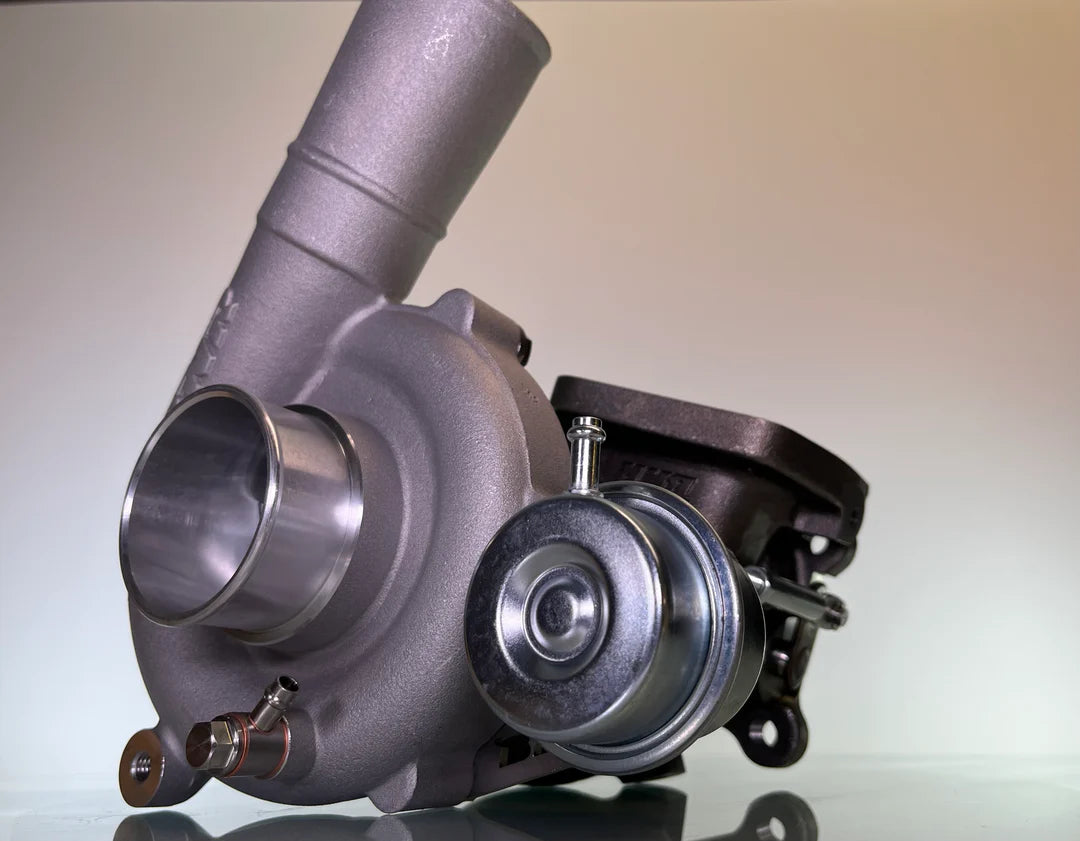

BNR S3 V4 Turbocharger
BNR S3 V4 Turbocharger
BNR S3 V4 Turbocharger
BNR S3 V4 Turbocharger

BNR S3 V4 Turbocharger

Regular price $1,150.00 Sale price$1,100.00 Save $50.00
/

The BNR S3 version 4 turbocharger has a 2.36” inlet and works with most all the aftermarket turbo inlet tubes.   All the tuners like using an aftermarket boost control solenoid with a single barbed wastegate actuator.  The S3’s compressor wheel is rated for 46 lb/min air flow.  We’ve had countless customers dyno 360-400 WHP with the S3.  The S3 will max the factory fuel system with the upgraded fuel pump internals at 360-370 WHP.  If you don’t plan on axillary methanol injection, the s3 is what you need!  Here is what you get with the S3 turbocharger upgrade!

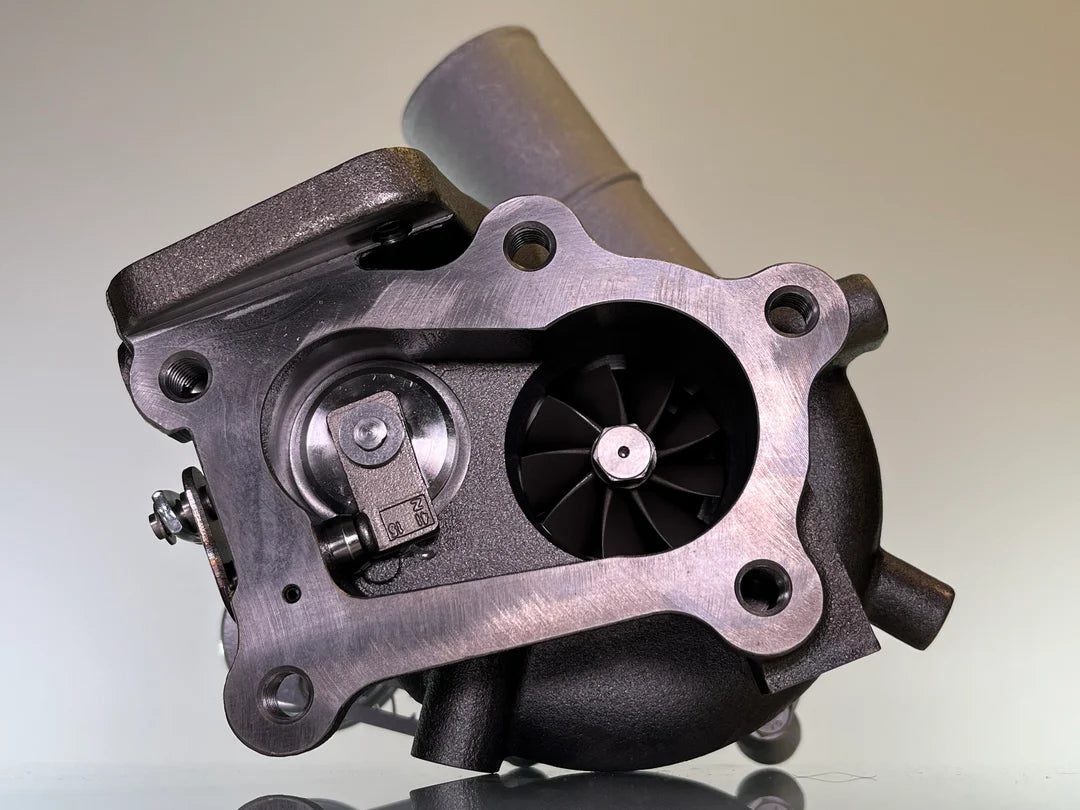

  • GT28 Turbine wheel
  • 2867 Gen 2 point milled compressor wheel (46 lbs/min flow rate)
  • High Performance 360 thrust assembly
  • Wide journal bearings
  • Rear journal bearing oil deflector (Diverts oil away from the turbine seal)
  • High Performance turbine seal
  • VSR balanced CHRA (Center Housing Rotating Assembly)
  • BNR’s custom T2 bearing housing (uses all OE oil and water fittings)

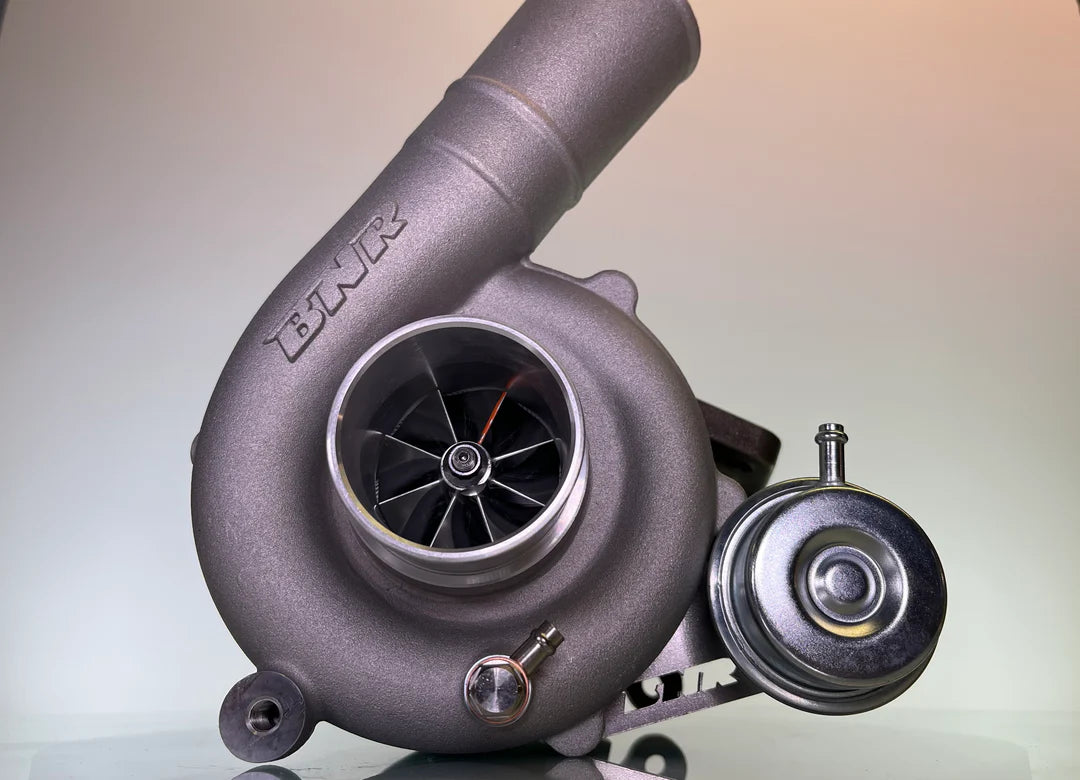

  • BNR compressor housing
  • BNR .63 a/r turbine housing with 27mm wastegate port
  • Upgraded wastegate actuator (set at 15-16 psi)

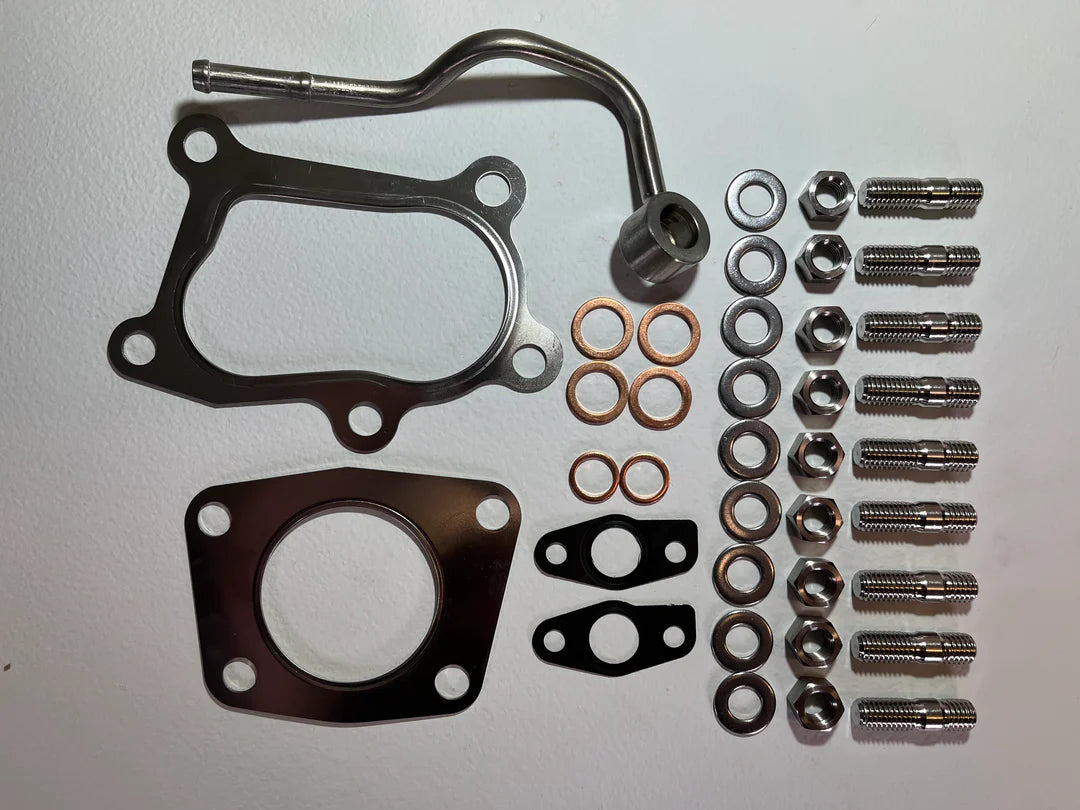

  • All stainless hardware
  • 5 Layer stainless MLS turbine inlet/outlet gaskets
  • (9) M10 1.5 exhaust studs
  • Extended stainless water line (firewall side)
  • (4) 14mm copper sealing rings
  • 1 year warranty!
