Damond Motorsports Mazdaspeed Port Fuel Injection Adapter

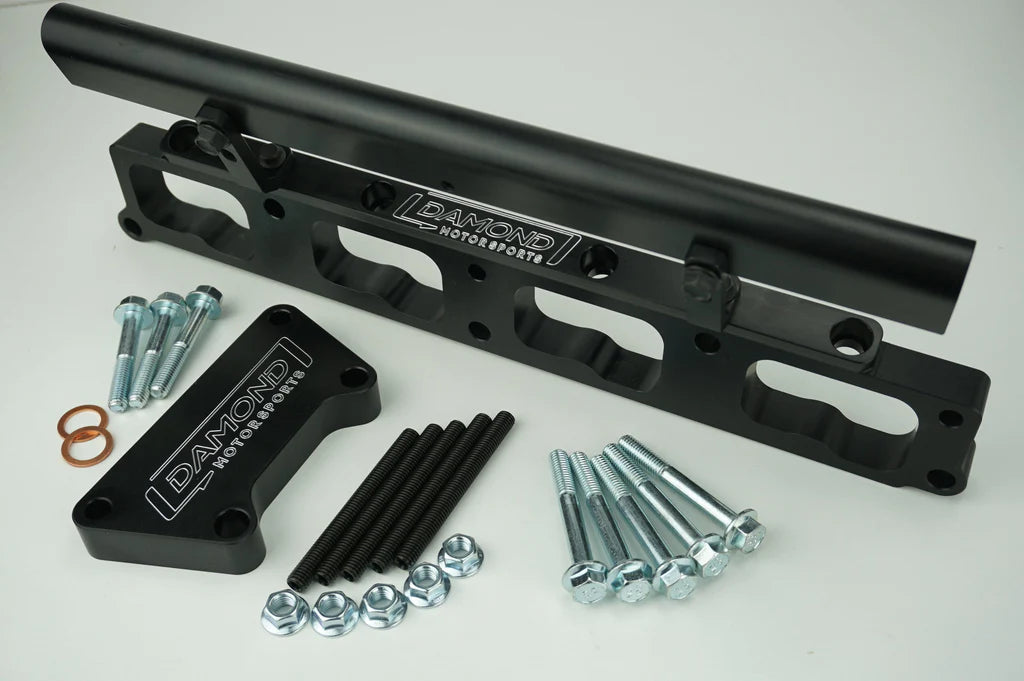

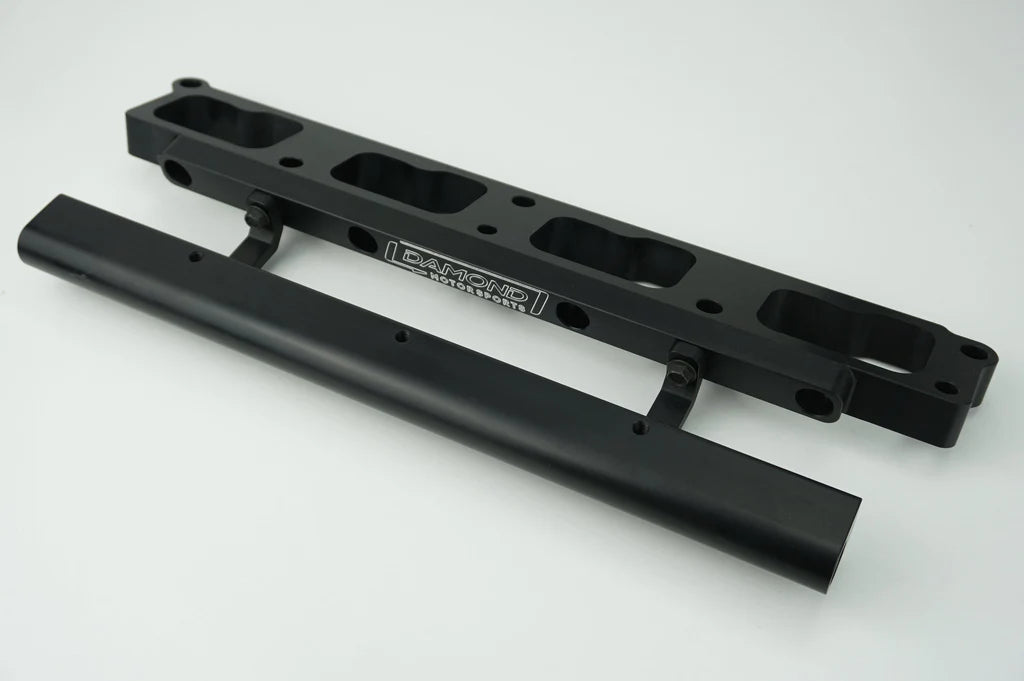

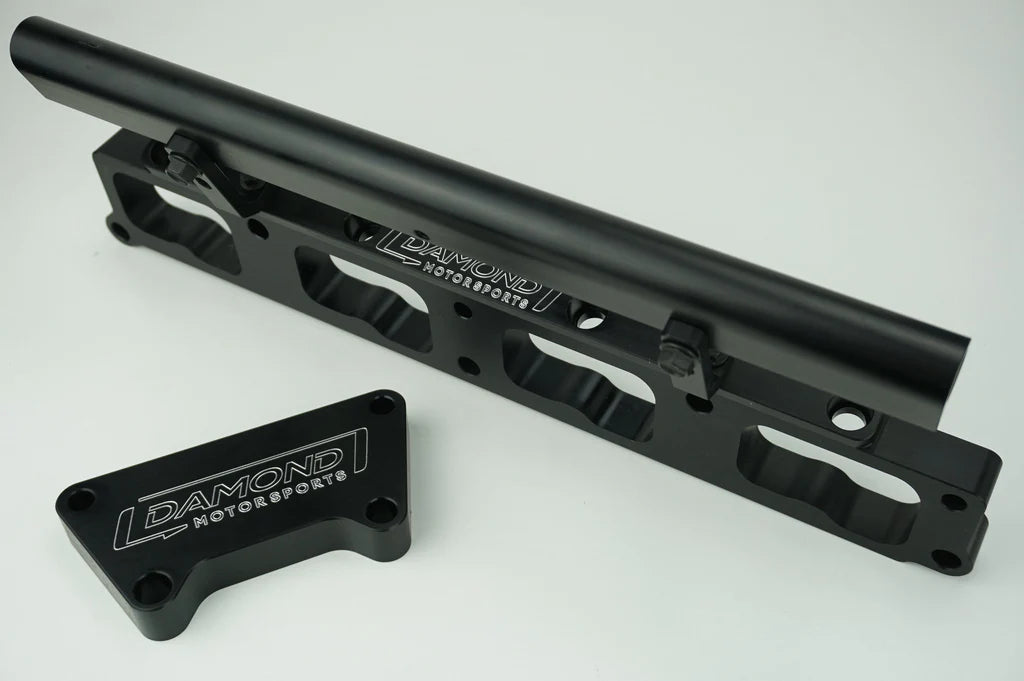

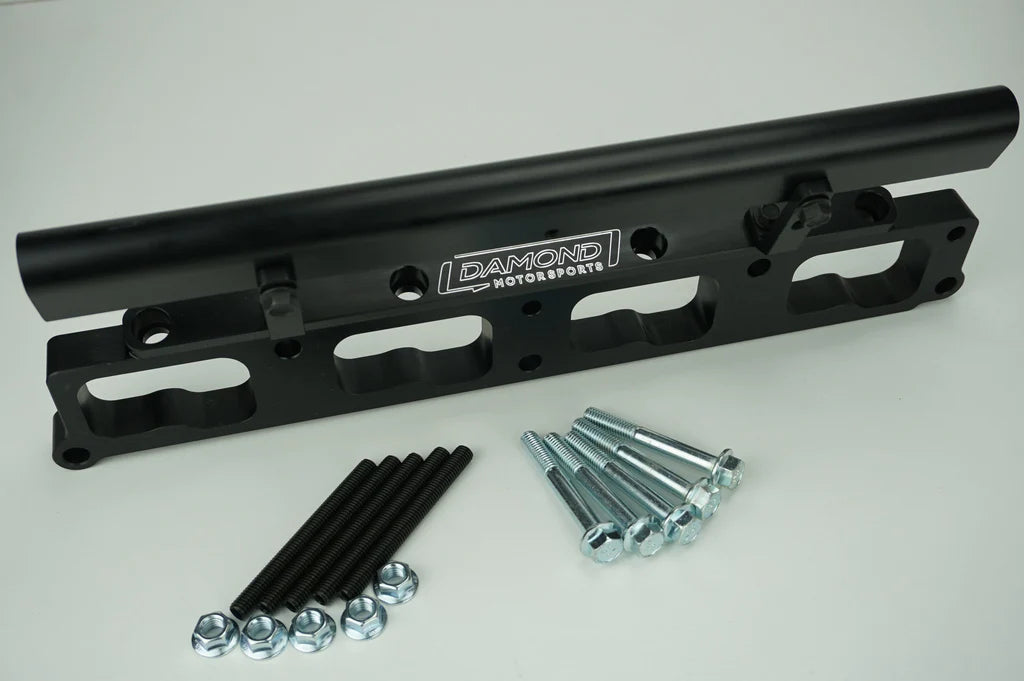

The Damond Motorsports Mazdaspeed PI Adapter Kit, allows you to run port fuel injection with the factory intake manifold. This kit includes our fully machined and black anodized adapter plate, fuel rail and rail mounts, along with the necessary mounting hardware. For the Mazdaspeed6 and 07-09 Mazdaspeed3, a power steering pump spacer is included, to adequately space the power steering pump allowing clearance to run the adapter.
14mm o-ring both ends, 34mm or 48mm length injectors.
For the 07-09 Mazdaspeed3 and Mazdaspeed6 a slightly longer belt may be needed. Use 2008 Ford Escape V6 belt or common part number: 6PK2335 orK060919
Fuel injectors, controllers, lines and fittings are not included, however we can source many of these components if needed. Contact us at email@example.com with your build plans, and we can work on a full fueling solution for you. If you have a non-OEM manifold, please mention in the order notes, as different hardware may be needed.
Can fit with the JMF and CS Manifolds. Modification the the manifolds is required(minor filing and removing of tabs) to allow fitment of the adapter. If fitting to a JMF or CS manifold, please inquire as different hardware is needed.
